2-in-1 Upper Limb CPM Machine | Shoulder & Elbow Continuous Passive Motion Rehabilitation
Two Joints. One Machine. Complete Recovery.
The CPM-A is a 2-in-1 upper limb CPM (Continuous Passive Motion) machine, combining shoulder and elbow rehabilitation in a single chair-type system. Driven by a touch-screen host with imported integrated components, it delivers precise, low-speed passive motion therapy — supporting recovery after surgery, stroke and fracture in clinics, rehab centers, hospitals and homes.
About CPM Therapy
Continuous Passive Motion (CPM) therapy moves a joint through a controlled range of motion automatically, without patient effort. The CPM-A drives the affected limb through repeated, gentle flexion and extension cycles that stimulate the joint, promote healthy circulation of physiological joint fluid, reduce swelling, and help prevent the consequences of immobility — such as decreased range of motion, joint stiffness and venous embolism.
🚀 Key Features & Benefits
-

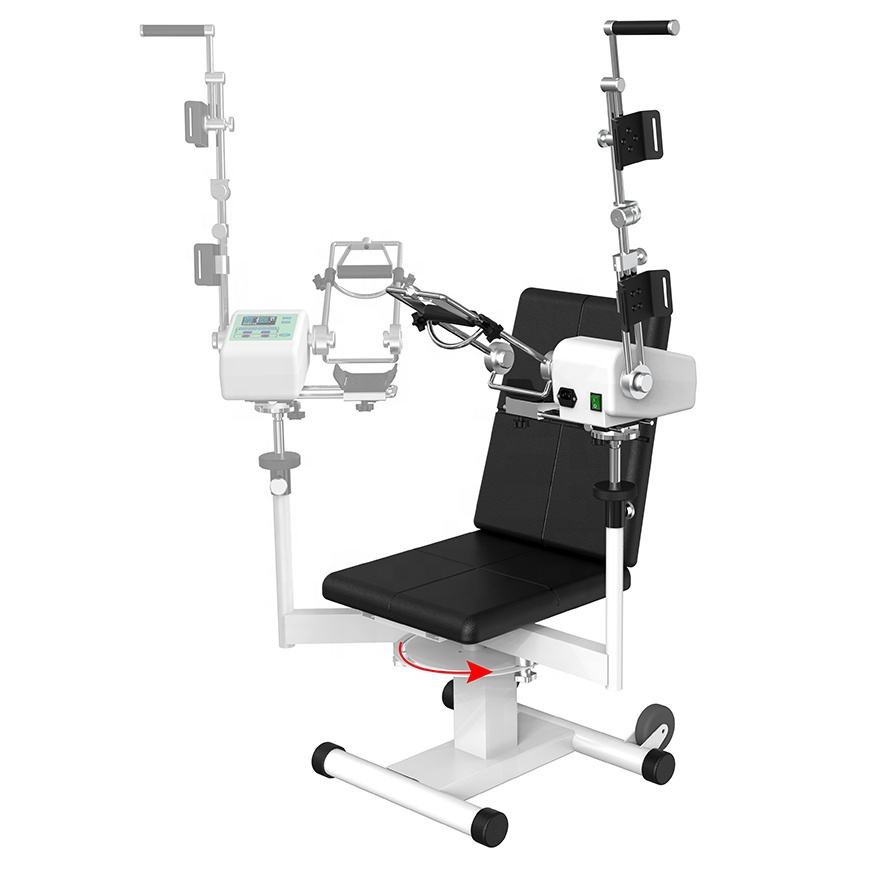

2-in-1 Shoulder & Elbow Therapy One chair-type machine covers both shoulder and elbow joints — with adjustable brackets that can also accommodate wrist, finger and ankle training (optional), maximizing clinical value.
-
Touch Screen + Precision CPU Control Imported integrated components and a large-capacity CPU precisely control motion angle, speed and time, with a large touch screen that clearly displays all parameters for clinical monitoring.
-
Full Clinical Angle Range Shoulder motion adjustable from 0° to 150° and elbow from 0° to 125° (wrist -50° to +50°, finger 0° to 270°, ankle -50° to +50° with optional brackets) — meeting standard rehabilitation targets.
-
Three Smart Control Modes Normal, Angle and Speed modes: Angle mode automatically increases the range by 3° every 15 minutes; Speed mode automatically advances one gear (up to 9) every 15 minutes — for progressive, adaptive therapy.
-
Built-In Torque Protection Three torque levels (100% / 65% / 35% motor output) with automatic reverse or stop when the limit is exceeded — protecting the patient’s limb at all times.
-
Hand Controller for Patient Safety A dedicated hand controller lets the patient or therapist pause or stop the machine instantly; pressing any button during an abnormal condition activates protection.
-
Quiet, Continuous Operation Working noise ≤ 60 dB with up to 4 hours of continuous operation — comfortable for extended therapy sessions.
-

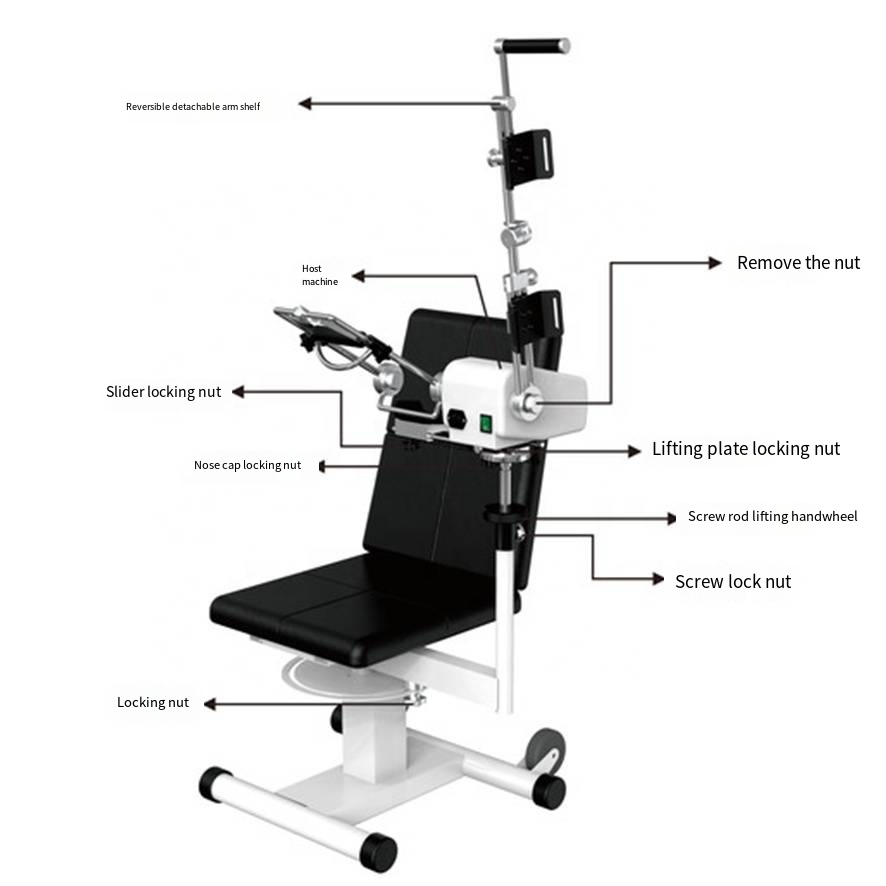

For Hospitals and Homes Simple assembly (three locking nuts), quick-release brackets requiring no tools, and design suitable for both clinical and household use.
📊 Technical Specifications
🏥 Ideal For
- Post-operative rehabilitation — upper limb joint recovery after shoulder or elbow surgery
- Stroke & fracture patients — assisted passive motion training for joint function
- Joint dysfunction — maintaining and promoting joint capsule mobility
- Hospitals & rehabilitation centers — professional, repeatable CPM treatment
- Home care — easy-to-operate therapy for household rehabilitation
✅ Why Choose CPM-A / Dynasty Medical?
- Clinical design per owner’s manual — Class II BF safety classification with torque protection
- 2-in-1 value: shoulder + elbow therapy in one machine, plus optional wrist, finger and ankle brackets
- Full OEM/ODM support — customized logo and specifications accepted
- 1-year warranty with online technical support, MOQ from 1 set
❓ Frequently Asked Questions
What is a 2-in-1 upper limb CPM machine? A 2-in-1 upper limb CPM (Continuous Passive Motion) machine is a therapeutic device that automatically moves the shoulder and elbow joints through controlled flexion and extension cycles — helping restore joint mobility and support healing after surgery, stroke or injury, without requiring patient effort.
What joints does the CPM-A train? The CPM-A is designed for shoulder and elbow rehabilitation as a 2-in-1 system, and supports wrist, finger and ankle training with optional brackets.
What is the angle range of the CPM-A? Shoulder motion is adjustable from 0° to 150° and elbow from 0° to 125° — meeting standard clinical rehabilitation targets. Wrist, finger and ankle ranges are also configurable.
Is the CPM-A safe to use? Yes. It features built-in torque protection (three output levels with automatic reverse/stop), a hand controller for instant stop, and Class II BF safety classification.
Who is the CPM-A suitable for? It is suitable for post-operative patients, stroke and fracture recovery, and patients with joint dysfunction — in hospitals, clinics, rehab centers and home settings, under professional guidance.
Do you support OEM/ODM and customized logos? Yes. OEM/ODM production with customized logo and specifications is accepted.
